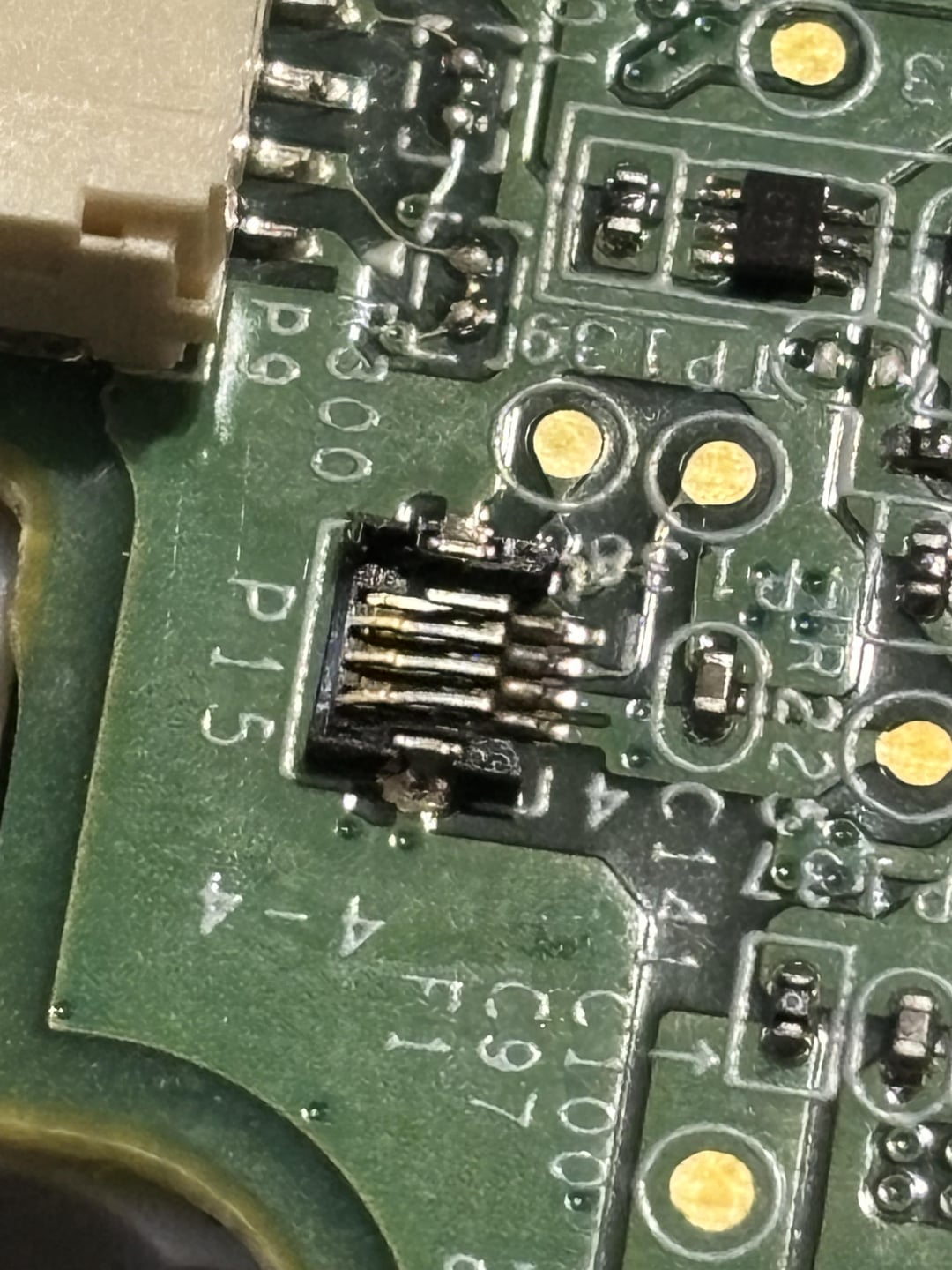

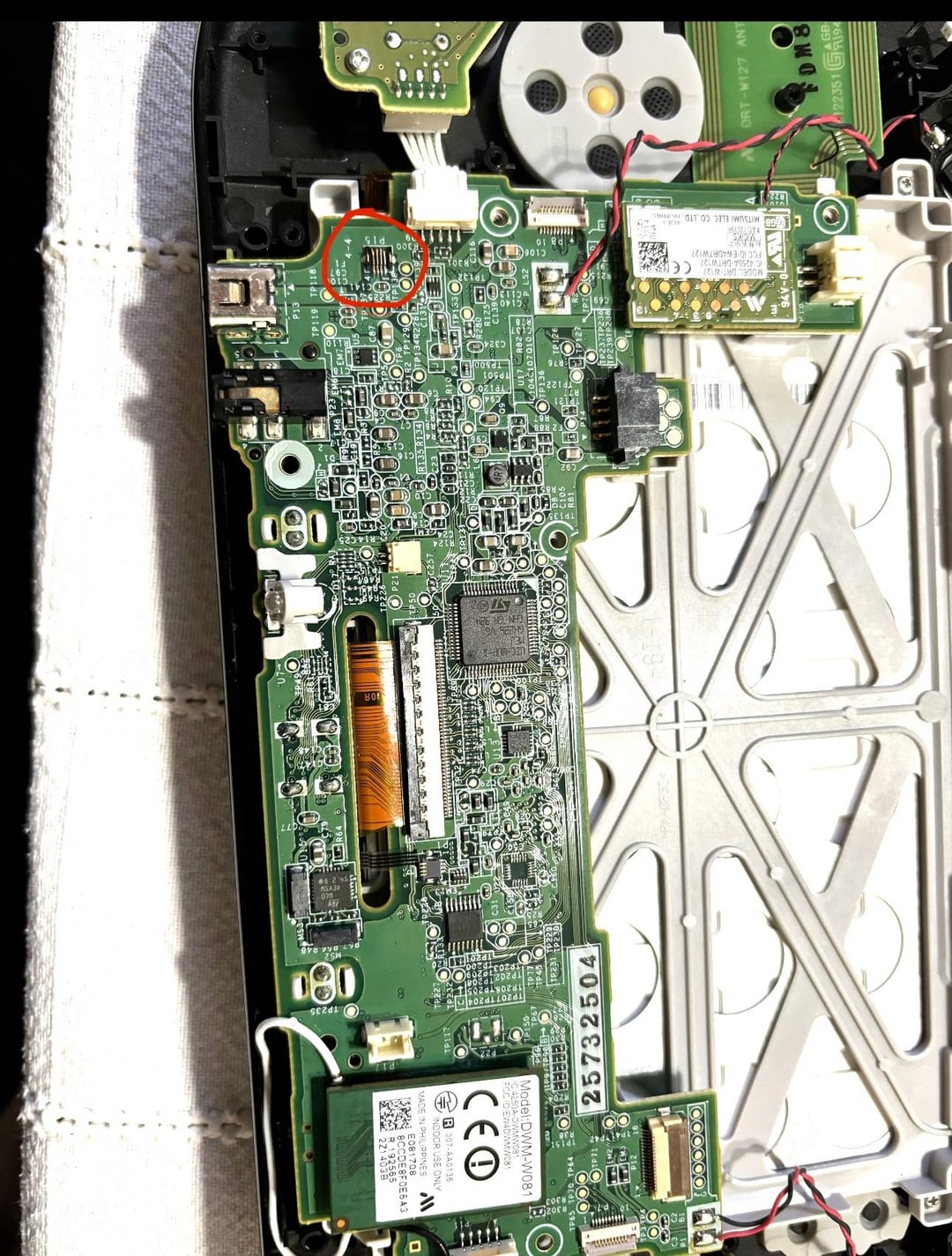

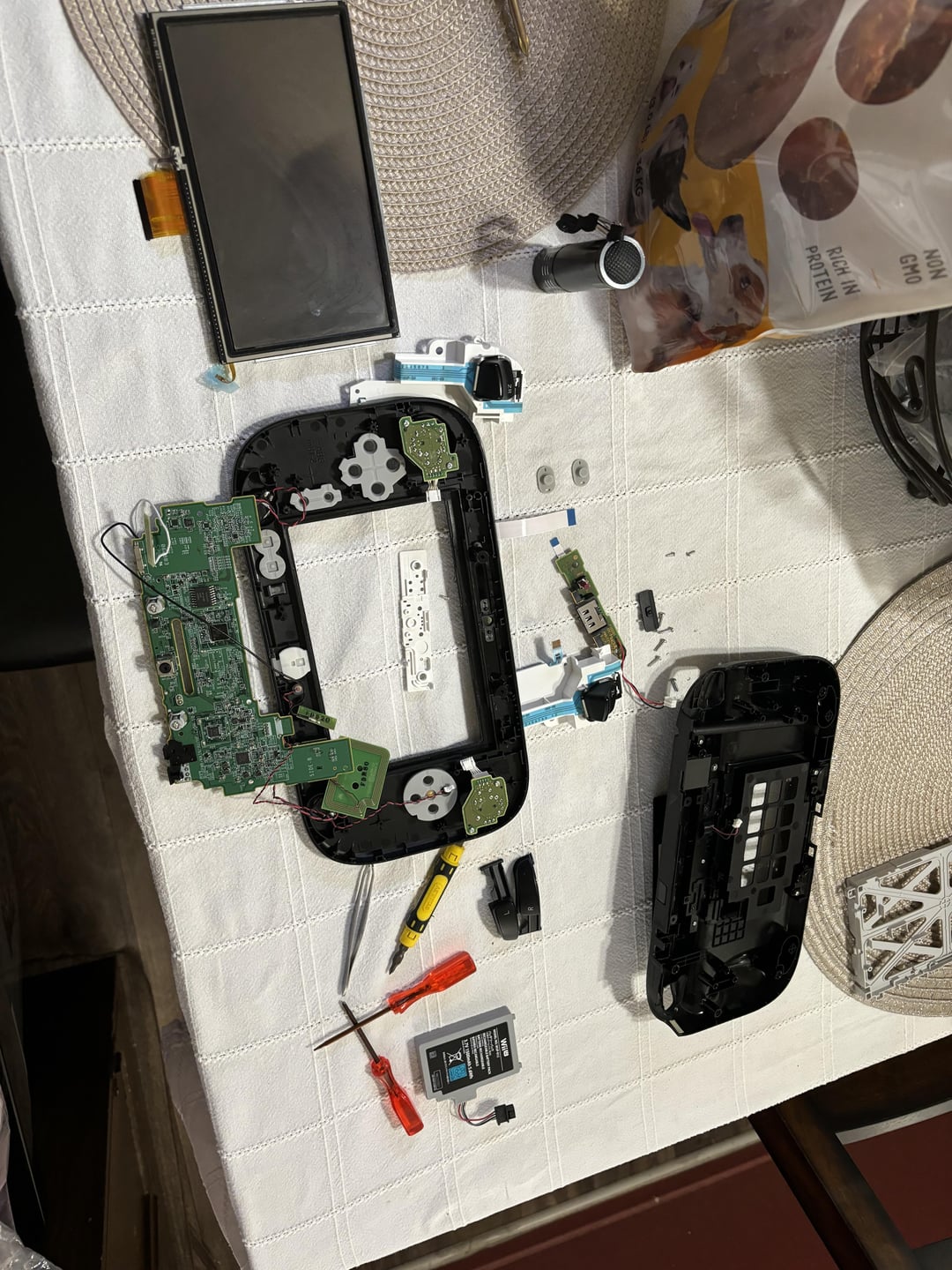

I have dismantled this entire gamepad and havent found a fix for my screen. One of the clamps are broken how do i fix it? and what is the specific cable supposed to do? Ive already tried taping the cable down with normal and electrical tape but it hasnt worked
Posted by Mynameisdeez234
6 Comments
I truly hope you could fix it 🤞
I bought whole new motherboard (prepared for dislikes)
Hot glue or blu tac.
It looks like the same kind of connector that’s extremely prone to breaking on DS/3DS models, so this method of replacing the broken piece might work for you as well:
https://www.youtube.com/watch?v=4vQQOG1hmxA
I can say from experience that the “slip the ribbon under the pins, bend them down and tape it into place” method is not a good idea long term — it will gradually come loose again and each subsequent time you put pressure on the pins increases the chance of breaking one off. (My N3DS-XL is unusable right now thanks to that…sigh.)
Rip. You’ll either need microsoldering skills or buy a whole new board. Don’t worry too much cuz things like these happen
I assume it’s a temporary fix but sticky tac has been working to hold my 3ds together with the same issue. Absolutely sucks when these things happen.
